| LAN IN | 1 x 10/100Base-TX Ethernet with IEEE 802.3af PoE “Data + DC” in
Auto MDI/MDI-X, auto-negotiation RJ-45 connector |
| LAN OUT | 1 x 10/100Base-TX Ethernet with IEEE 802.3af PoE “Data + DC” out
Auto MDI/MDI-X, auto-negotiation RJ-45 connector |
| Power over Ethernet |
| PoE Standard | IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type | Mid-Span / Type B |
| PoE Power Output | 48V DC, 270mA, Max. 13Watts |
| Power Pin Assignment | 4/5(+), 7/8(-) |

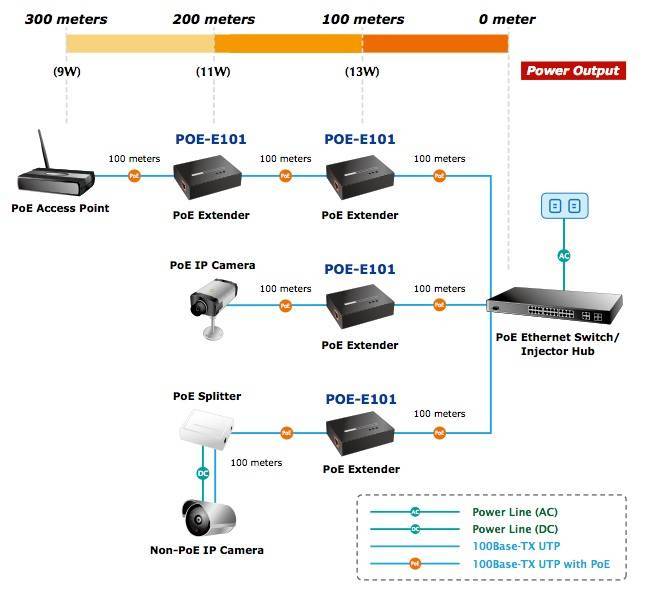

| Maximum Distance | Class 1 (3.8 watts): 300m
Class 2 (6.5 watts): 300m
Class 3 (12.9 watts): 200m
Non-PoE (Data): 300m |
| Hardware Specifications |
| Hardware Version | Version 2 |
| Data Rate | 10/100Mbps |
| Switch Architecture | Store-and-Forward |
| Switch Throughput | 148810pps@64Bytes |
| Latency | 7.840µs |
| Maximum Frame Size | 1552Bytes |
| Flow Control | Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex |
| LED Indicators | 1 x PoE IN (Green)
1 x LAN Data (Green)
1 x PoE OUT (Green) |
| Protection | ESD(Ethernet): 6KV
Surge (EFT for power) : 6KV |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 215g |
| Power Requirements | IEEE 802.3af compliant with voltage within 44V-56V DC |
| Power Consumption | 2 watts (maximum) |
| Mechanical | Metal / wall mountable and optional DIN-rail kit for installation |
| Cable | TIA / EIA-568, Category 5/5e cable |
| Standards Conformance |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 10/100Base-TX Fast Ethernet
IEEE 802.3af Power over Ethernet PSE / Mid-Span
IEEE 802.3af Power over Ethernet PD / Mid-Span
IEEE 802.3x Flow Control |
| Environment |
| Operating | Temperature: 0 ~ 50 degrees C
Relative Humidity: 0 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
