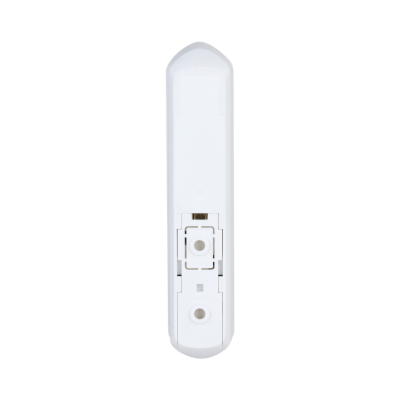

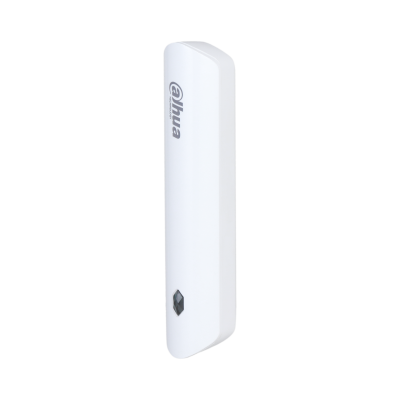

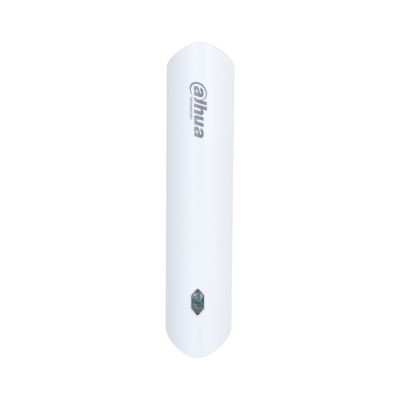

DHI-ARM310-W2(868) Draadloze Input Module
Draadloze ingangsuitbreiding. Zes soorten alarm: inbraak, medisch, brand, noodsituatie, gas en sabotage NC en NO zijn beschikbaar voor alarmingangen (NO is standaard). Detectie van de signaalsterkte. Laag batterij alarm. Temperatuurbewaking. Frequency hopping functie en twee-weg communicatie technologie zorgen voor communicatie stabiliteit. Cloud update en automatisch herstel van updatefouten.
Specificaties:
- Port
- Indicator Light - 1 × green alarm indicator
- Button - 1 × power button
- Protection Zone - 1-channel dry contact input
Function - Tampering Alarm - Yes
- Remote Upgrade - Cloud update
- Low Battery Alarm - Yes
- Test Mode - Yes
- Search - Signal strength detection
Wireless - Carrier Frequency - 433.1 MHz–434.6 MHz
- Communication Distance - Up to 1,000 m (3,280.84 ft) in an open space
- Communication Mechanism - Two-way
- Frequency Hopping - Yes
- Encryption Mode - AES128
General - Power Supply Mode CR123A battery
- Power Consumption Max. 70 mW
- Operating Temperature - –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity - 10%–90% (RH)

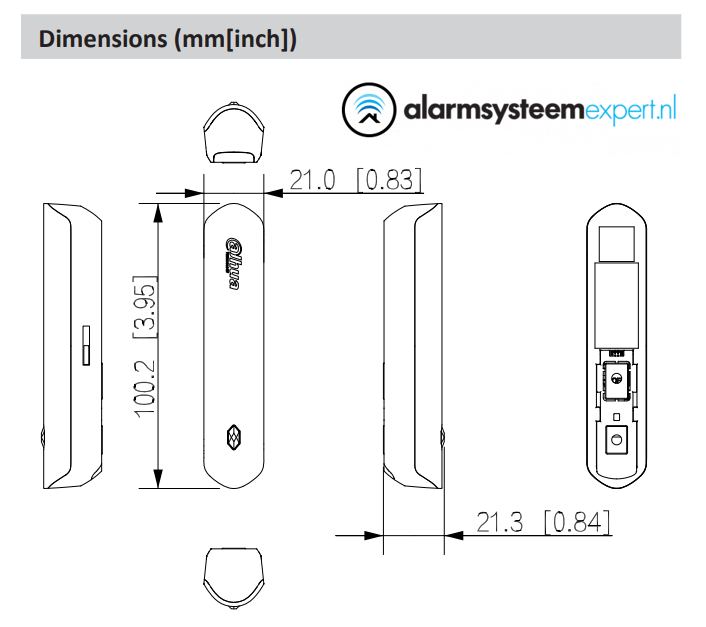

- Dimensions - 100.2mm × 20.8mm × 20.3mm (3.94" × 0.82" ×0.80")
- Package Dimensions - 135.0 mm × 98.5 mm × 27.8mm (5.31" × 3.88" × 1.09")
- Installation Mode - Bracket mount
- Net Weight - 70 g (0.15 lb)
- Gross Weight - 115 g (0.25 lb)
- Certification - CE
- Battery Life - 5 years
- Casing Material - PC + ABS
Temperature - Measurement Range - –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
- Measurement Precision - ± 1 °C (± 33.8 °F)
- Resolution - 1 °C (33.8 °F)
