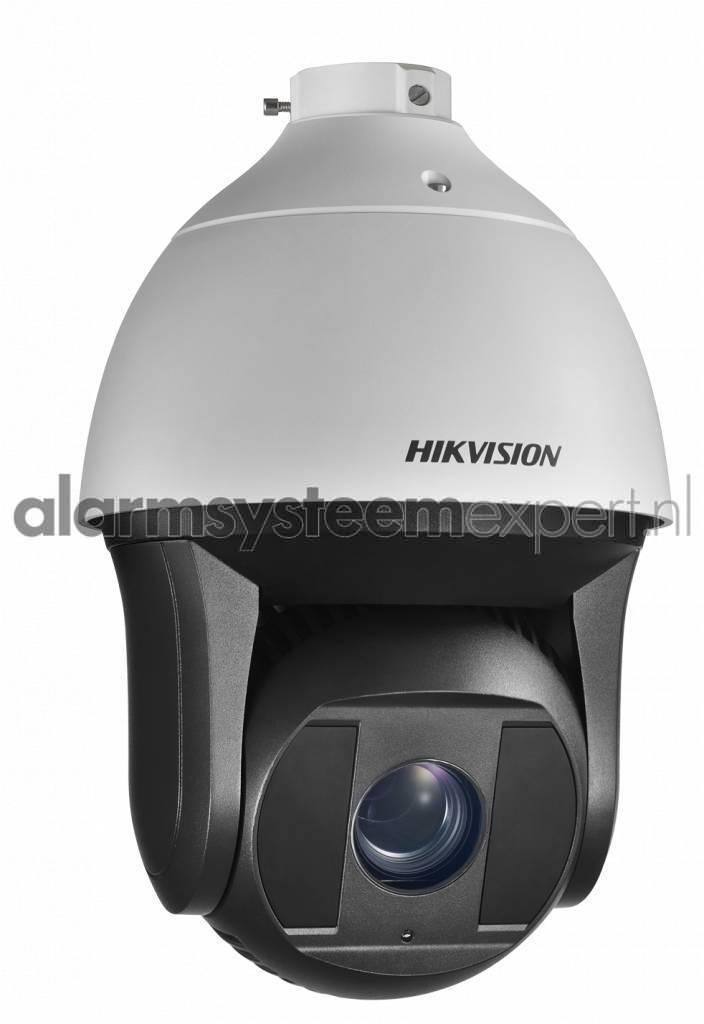

DS-2DF8836IX-AEL | 8 Megapixel | Binnen/Buiten | Nachtzicht | 36x zoom | Smarttracking
Hikvision Darkfighter PTZ-camera:
De Hikvision Darkfighter PTZ-camera's zijn in staat om hoge kwaliteit gekleurde beelden weer te geven bij omstandigheden van minimale verlichting. Dit kan al vanaf een verlichtingsniveau van 0,002 lux (kleur). De camera beschikt daarnaast over True WDR (120dB) en geeft beelden met een kwaliteit van 8MP. Met de 36X optische zoom Day / Night-lens, de camera biedt meer details over uitgestrekte gebieden. Uniek aan deze PTZ camera is dat hij 20 graden door zijn horizontale as kan draaien, waardoor ook in de ingezoomde stand de PTZ nog omhoog kan draaien om de optimale beelden te geven.
Slimme Functies:
De Darkfighter PTZ-camera beschikt ook over een brede waaier van slimme functies, zoals gezichtsherkenning, inbraakdetectie, crossline-detectie. Deze eigenschappen worden gecombineerd met de slimme tracking, hetgeen de camera in staat stelt om elke geleidelijk bewegend object op te sporen en te volgen. Smart Anti-mist en EIS (Electronic Image Stabilization) worden verder gebruikt om de beeldkwaliteit in uitdagende omstandigheden te verbeteren. De Darkfighter Smart PTZ opent nieuwe mogelijkheden voor de 24-uurs cameratoezicht.
Intelligente Rapid Focus
De intelligente Rapid Focus functie zorgt er voor dat op elke plek in het beeld razendsnel scherp beeld kan geven. Door op alle plekken in het beeld scherp te stellen, en deze parameters te bewaren, kan de PTZ naar elke plek in het beeld gaan en vanuit geheugen direct scherp stellen. Deze razendsnelle techniek om scherp te stellen heet terecht Rapid Focus.
Specificaties:
- 2/3” HD CMOS sensor
- Up to 4096 × 2160 resolution
- 36X Optical Zoom
- Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR
- Smart Tracking
- Smart Detection
- 200m IR distance
- Optional wiper(-W)
- Hi-PoE / 24VAC power supply
- Support H.265+/H.265 video compression
- Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
- Rapid focus
- IP67, IK10
| Camera |
|---|
| Image Sensor: | | 2/3" progressive scan CMOS |
| Effective Pixels: | | 4096x2160 |
| Signal System: | | PAL/NTSC |
| Minimum Illumination: | | Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.0005 Lux @(F1.5, AGC ON)
0 Lux with IR |
| AGC: | | Auto/Manual |
| BLC: | | ON/OFF |
| HLC: | | Support |
| Smart defog: | | Support |
| WDR: | | DWDR |
| Shutter Time: | | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s |
| Day& Night: | | ICR |
| Digital Zoom: | | 16X |
| Privacy Masking: | | 24 privacy masks programmable |
| Auto Focus: | | Auto / Semi-automatic / Manual |
| Lens |
|---|
| Focal Length: | | 7.5 mm to 270 mm, 36× Optical |
| Zoom Speed: | | Approx. 7.8 s (optical lens, wide-tele) |
| Angle of View: | | Horizontal field of view: 56.1° to 2.0° (wide-tele)
Vertical field of view: 33.4° to 1.1° (wide-tele)
Diagonal field of view: 62.9° to 2.3° (wide-tele) |
| Minimum Working Distance: | | 10-1500mm(Wide-Tele) |
| Aperture Range: | | F1.5~F4.5 |
| Pan & Tilt |
|---|
| Pan Range: | | 360°endless |
| Pan Speed: | | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s |
| Tilt Range: | | -20°~90°(Auto Flip) |
| Tilt Speed: | | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s |
| Proportional Zoom: | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | 300 |
| Patrol: | | 8 patrols, up to 32 presets per patrol |
| Pattern: | | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power-off Memory: | | Support |
| Park Action: | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | ON/OFF |
| Smart-tracking: | | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger |
| Wiper: | | Optional |
| Infrared |
|---|
| IR irradiation distance: | | 200m |
| IR irradiation angle: | | Adjustable by zoom |
| Alarm |
|---|
| Alarm Input: | | 7 Inputs |
| Alarm Output: | | 2 |
| Alarm Actions: | | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel |
| Network |
|---|
| Ethernet: | | 10Base -T, /100Base-TX, RJ45 Connector |
| Sub Stream: | | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream: | | 50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240) |
| Video Compression: | | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG |
| ROI encoding: | | Support |
| Audio Compression: | | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Mode: | | OFF/Audio input/Audio output |
| No. of Simultaneous Users: | | Up to 20 users |
| Three-Stream: | | Support |
| Mini SD Card: | | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| Security Measures: | | User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering |
| Client GUI |
|---|
| Camera Control: | | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | | Time: Week: Date, 6 formats on the Client |
| Client: | | Support iVMS-4200 |
| Web Browser: | | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
| General |
|---|
| RS-485 Protocols: | | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Power Supply: | | 24 VAC & Hi-PoE |
| Power Consumption: | | 24 VAC (Max. 60 W)
Hi-PoE (Max. 50 W) |
| Working Temperature/Humidity: | | -40°C ~ 65°C (-40°F ~ 149°F) |
| Protection Level: | | IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection |

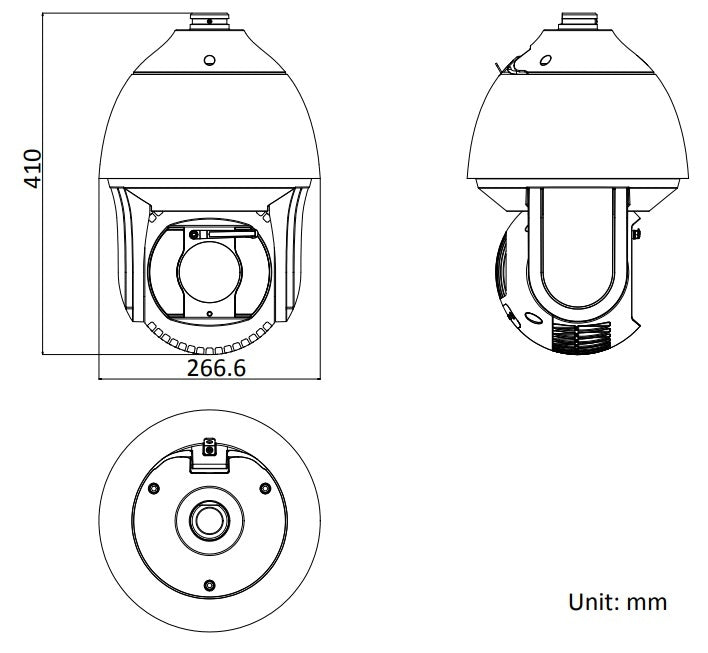

| Dimensions: | | Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14") |
| Weight (approx.): | | 8kg (approx.17.64lb) |
