CCTV/IP tester is een professionele, universele bewakingscamera tester voor IP, Turbo HD, HD-TVI-HD-CVI, AHD en CVBS analoge camera's.
Dit model, met Android besturingssysteem, beschikt over onder meer een complete testrange zoals kabeltester, afstandstester, een PoE uitgang, WiFi, een touchscreen scherm, een HDMI ingang, audio tester en nog veel meer. De beeldresolutie is geschikt voor IP camera's met H.265 en H.264 decoding tot 8MP/4K Ultra-HD, Turbo camera's tot 8MP/4K en HDCVI en AHD camera's tot 8/4KMP.

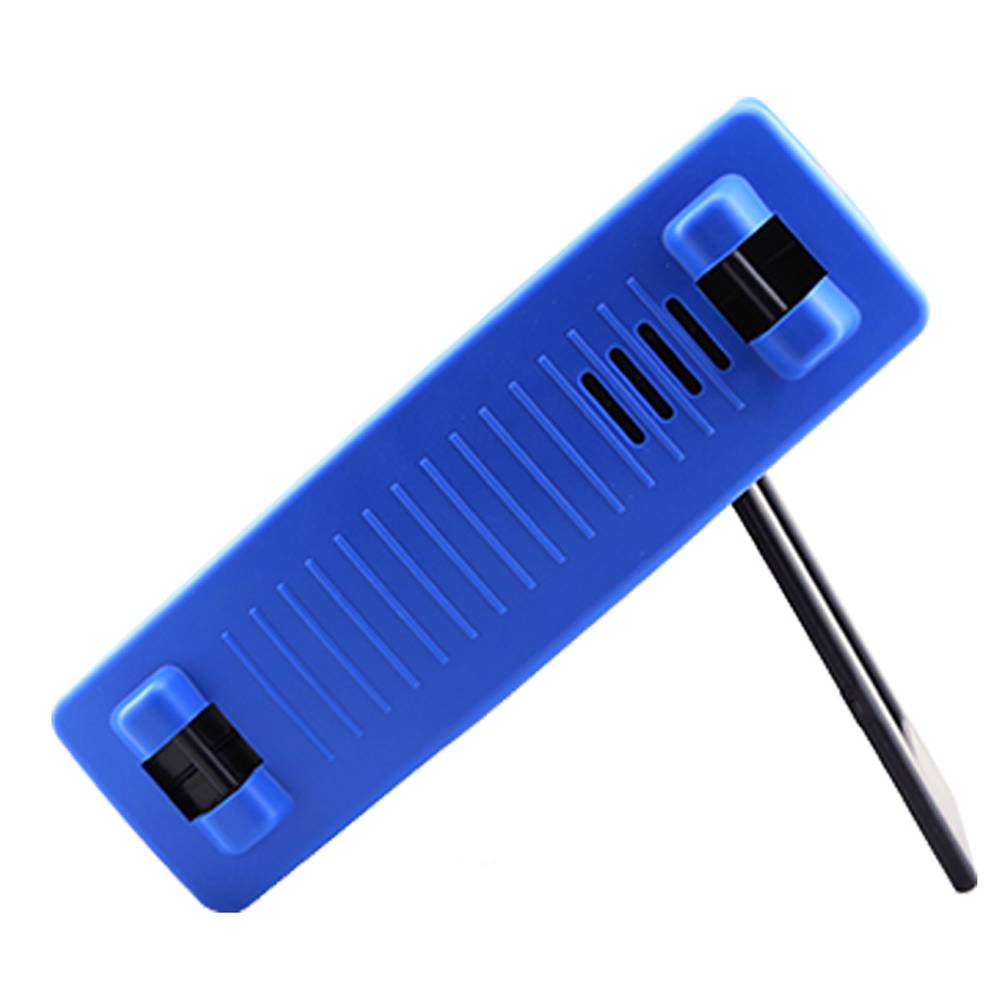

Door de diversiteit van deze tester kan de professionele installateur eenvoudig en snel diverse soorten en merken camerasystemen installeren en onderhouden. Door de rubberen stootrand is deze ideaal voor service en installatiemonteurs.
De lithium batterij (7.4V 5000mAh) heeft een operationele tijd van ongeveer 10 uur. Bij de tester zitten diverse kabels, een 8GB microSD kaart, een gebruikershandleiding, draagtas, adapter en kabeltester.
Specificaties;
Camera test:
● 7 inch retina touch screen, 1920*1200 resolutions
● H.265 & H .264 IP, 4K video display via mainstream
● 8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)
● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
● DC12V/2A power output, camera can be powered from DC 12Votage
● 48V PoE power output power
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM*
Other functions:
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● POE & power information, DC12V& PoE power and voltage output /input measurement
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and snapshot
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
● 8GB SD card including
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /7000mAh Lithium Ion Polymer Battery, after 7~8 hours charging , working time lasts 16 hours
