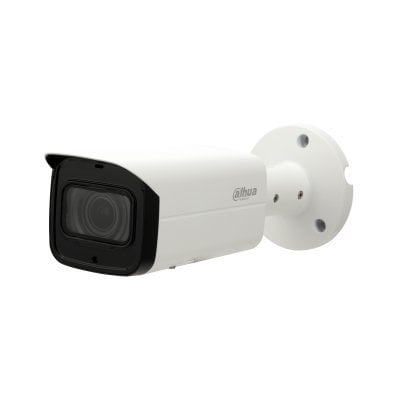

IPC-HFW2841T-ZS Bullet Zoomlens 2.7-13.5mm Wizsense 8MP/4K PoE
Met de verbeterde H.265-coderingstechnologie beschikt de Dahua Lite-serie camera over een technologie met efficiënte compressie die bandbreedte en opslagruimte bespaart. Deze maakt gebruik van de Starlight technologie. Deze technologie zorgt voor een kleurrijk beeld in situaties met weinig licht. Lite serie camera's beschikken over tegenlicht compensatie, SD-kaartslot en een behuizing die voldoet aan de IP67 en IK10 norm
> 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
> Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 60 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal ac cess, voltage detection
> Supports max. 256 GB Micro SD card
> 12V DC/POE power support
> IP67 protection
Specificaties:
Camera |
Image Sensor | 1/2.7” 8Megapixel progressive CMOS |
Effective Pixels | 3840 (H) × 2160 (V) |
ROM | 128 MB |
RAM | 256 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.008 [email protected] |
IR Distance | 60 m (196.85 ft) |
IR On/Off Control | Auto/Manual |
IR LEDs Number | 4 |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens |
Lens Type | Motorized vari-focal |
Mount Type | φ14 |
Focal Length | 2.7 mm–13.5 mm |
Max. Aperture | F1.5 |
Field of View | Pan: 113°–31° Tilt: 58°–17° Diagonal: 138°–36° |
Iris Type | Fixed |
Close Focus Distance | 0.8 m–0.8 m (2.62 ft–2.62 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 85.3 m (279.9 ft) | 34.1 m (111.9 ft) | 17 m (55.8 ft) | 8.5 m (27.9 ft) |
T | 280 m (918.6 ft) | 112 m (367.5 ft) | 56 m (183.7 ft) | 28 m (91.9 ft) |
Smart Event |
General IVS Analytics | Tripwire; intrusion |
Video |
Video Compression | H.265; H.264; H.264B; MJPEG |
Smart Codec | Yes |
Video Frame Rate | Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
Stream Capability | 2 streams |
Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 Kbps–8192 Kbps H.265: 12 Kbps–8192 Kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart IR | Yes |
Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
Mirror | Yes |
Privacy Masking | 4 areas |
Network |
Network | RJ-45 (10/100 Base-T) |
Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
Interoperability | ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
User/Host | 20 |
Edge Storage | Cloud; FTP; Micro SD Card (support max. 256 GB); NAS |
Browser | IE
Chrome
Firefox |
Management Software | Smart PSS; DSS; DMSS |
Mobile Phone | IOS; Android |
Certification |
Certifications | CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Power |
Power Supply | 12V DC/PoE (802.3af) |
Power Consumption | < 9.9W |
Environment |
Operating Conditions | –30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH |
Storage Temperature | –40°C to +60°C (–40°F to +140°F) |
Protection | IP67 |
Structure |
Casing | Metal |
Dimensions | Φ244.1 mm × 90.4 mm (Φ9.61" × 3.26") |
Net Weight | 0.86 kg (1.90 lb) |
Gross Weight | 1.10 kg (2.43 lb) |
