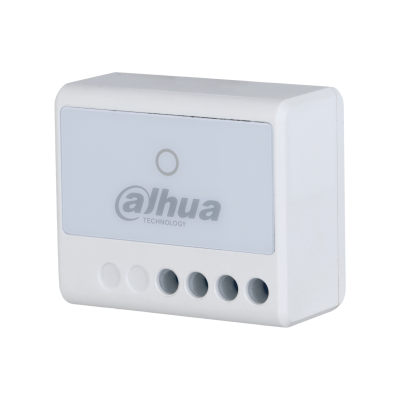

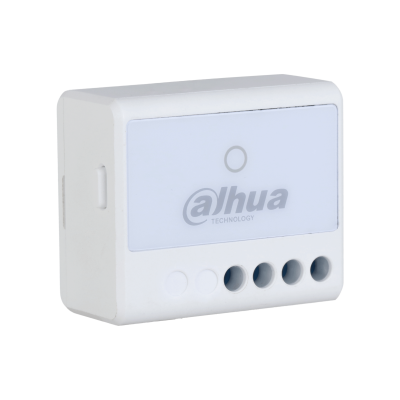

DHI-ARM7012-W2(868), Draadloze relais 230V
Dahua Wireless Relay Frequency hopping en two-way communicaton technologie zorgen ervoor dat de communicatie stabiel is. Ondersteunt storingsdetectie en communicatiecodering. Ondersteunt cloud update en herstelt automatisch wanneer cloud update mislukt. Bescherming tegen oververhitting. Spanningsdetectie. 1 kanaal externe sabotage-ingang.
Specificaties:
- Port
- Relay Output 1, NO/NC (100–240 VAC, Max 13A)
Function - Indicator Light 1 for multiple statuses (pairing, communication)
- Button - 1
- Remote Update - Cloud update
Technical - Test Mode - Yes
Wireless - Carrier Frequency - 868.0 MHz–868.6 MHz
- Communication Mechanism - Two-way
- Communication Distance - 1200 m (3937.01 ft) in open areas
- Encryption Mode - AES128
- Frequency Hopping - Yes
General - Power Supply - 100–240 VAC, 50/60 HZ
- Operating Temperature - –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
- Operating Humidity - 10%–90% (RH)
- Storage Temperature - –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Humidity - 10%–90% (RH)

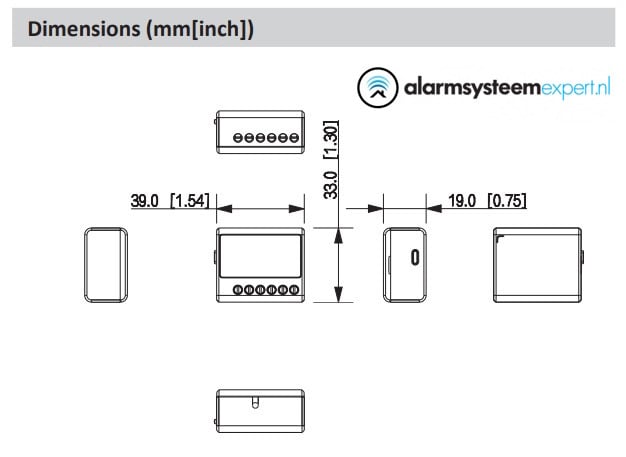

- Product Dimensions - 39 mm × 33 mm × 19 mm (1.54" × 1.30" × 0.75")
- Packaging Dimensions - 95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20")
- Net Weight - 45 g (0.10 lb)
- Gross Weight - 60 g (0.13 lb)
- Installation - Wall mount
- Casing Material - Plastic
- Certifications - CE
