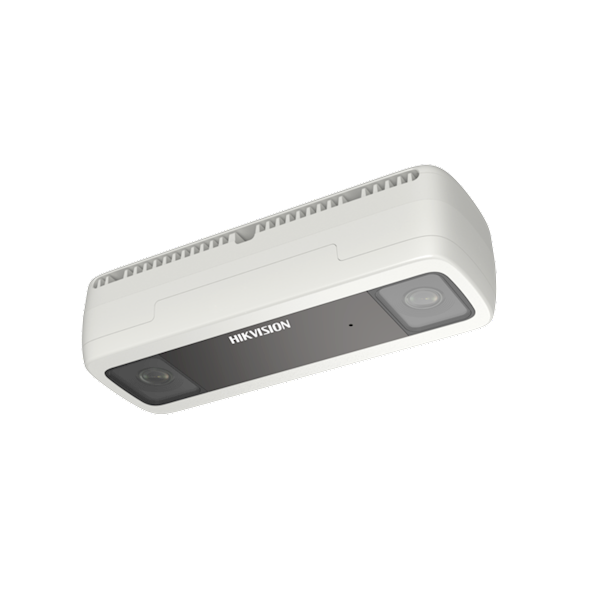

De mensen tellende netwerkcamera Hikvision DS-2CD6825G0/C-IVS bevat deep learning-algoritmen en biedt een hoge nauwkeurigheid en met een configuratie met twee lenzen die 3D-beeldvorming biedt om mensen te onderscheiden van levenloze objecten en schaduwen, bereikt een nauwkeurigheid van meer dan 97%. Naast het uitblinken in gebruiksgemak, maakt de DS-2CD6825G0/C-IVS-camera het downloaden en interpreteren van opgeslagen gegevens ook eenvoudiger dan ooit tevoren.
Gebruikers kunnen de informatie exporteren naar Excel en kunnen alle informatie naar behoefte dagelijks, wekelijks, maandelijks of jaarlijks weergeven. Dit geeft een zeer gedetailleerd overzicht van het aantal mensen dat het pand binnenkomt, verlaat of passeert gedurende een bepaalde periode.
Specificaties:
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON),B/W: 0.0035 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/25 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 2 mm
- Focal Length & FOV2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
- Lens MountM12
- ApertureF2.25
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 6 m
- IR Wavelength850 nm
- Video
- Main Stream
- 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed region(s) for main stream and sub-stream
- Audio
- Audio Type-S: Mono sound
- Audio Compression-S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering-S: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
- ClientiVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+, Safari12+
- Image
- Image SettingsSaturation,brightness,contrast,sharpness,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger (-S)
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC,HLC,3D DNR,defog
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in eMMC storage, up to 8 GB for people counting data
- Built-in MicrophoneYes
- Audio
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
-S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm-S: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
- RS-485-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Event
- Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
- Deep Learning Function
- People Counting
Counts people entering and exiting separately
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports target filtering by height
- General
- Power
- 12 VDC ± 20%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.24 A to 0.15 A, max. 8.5 W
- MaterialFront cover: plastic, camera body: metal
- Dimension168 mm × 61 mm × 41 mm (6.6" × 2.4" × 1.6")
- Package Dimension235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9")
- WeightApprox. 435 g (1 lb.)
- With Package WeightApprox. 835 g (1.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 144 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
