86033829
Let op! een harde schijf is niet inbegrepen.

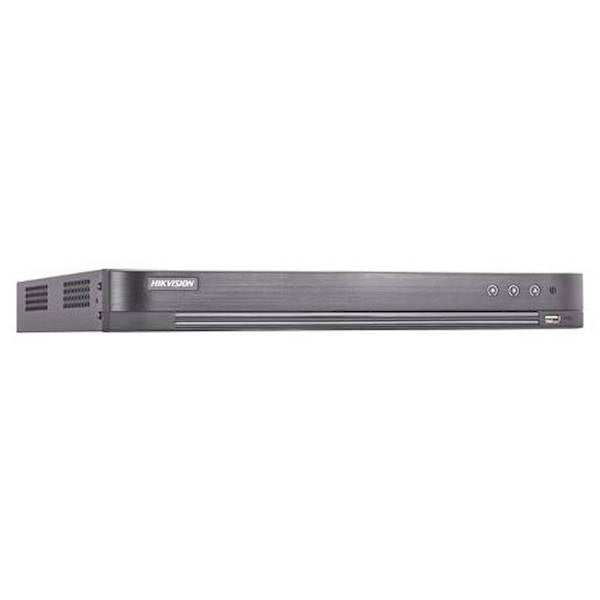

4K Turbo recorder:
De 4 kanaals 4K Turbo recorder kan camerabeelden opnemen van camera's tot 8MP!
Ook camera's van 2MP, 3MP en 5MP kunnen moeiteloos aangesloten worden op deze recorder. Voorzien van Acusense slimme detectie technologie.
De recorder herkent tevens -CVI camera's, AHD-camera, analoge camera's! Dit maakt de recorder multifunctioneel.
Via het netwerk kan tevens een IP camera toegevoegd worden. De recorder heeft ruimte voor 1 harde schijf van max. 8TB.
Specificaties:
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Video Compression: | H.265+/H.265/H.264+/H.264 | |
| Analog Video Input: | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| Analog and HD-TVI video input: | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 | |
| IP Video Input: | 2-ch Up to 8 MP resolution,Supports H.265+/H.265/H.264+/H.264 IP cameras | |
| Audio Compression: | G.711u | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| HDMI/VGA Output: | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Frame Rate: | Main stream: 8 MP@10fps, 5 MP@20fps, 3 MP@18fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps to 16 Mbps | |
| Stream Type: | VidVideo, Video & Audioeo, Video & Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input) | |
| Audio Output: | 1-ch, RCA (Linear, 1 KΩ) | |
| Audio Bit Rate: | 64 Kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 4-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA interface | |
| Capacity: | Up to 8 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| USB Interface: | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 | |
| Serial Interface: | RS-485 (half-duplex) | |
| Alarm Input: | 4/1 | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 15 W | |
| Working Temperature: | -10 ºC to +55 ºC (+14 ºF to +131 ºF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight: | ≤ 1.5 kg (3.3 lb) | |
Datasheet:
