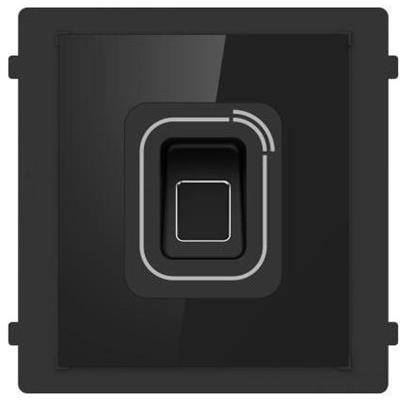

HikVision Video Intercom module, Submodule vingerafdruk- en kaartlezer M1, Desfire card, wordt gevoed via de hoofdmodule, montagetoebehoren niet inbegrepen.
Te installeren met accessoires (niet inbegrepen) in of opbouw , voeding via hoofdmodule, RS485 communicatie, IP65
Specificaties:
- Capacity
- Fingerprint capacity - 1000
- Card capacity - 6000
Authentication - Card reading frequency - 13.56 MHz
- Card reading distance - 2 cm
- Card type M1, Desfire card
Device interfaces - DIP switch - 8 bits
- RS-485 - 1
General - Installation - Flush mounting, surface mounting
- Protective level - IP65
- Working temperature - -30 °C to 60 °C
- Working humidity - 10% to 90% (no-condensing)
- Dimension - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
- Power supply - 12 VDC, supplied by the main module
- Power consumption - ≤ 4 W
