Technical Specs
Screen Size: 4.5-inch
Screen Resolution: 854x480 pixels

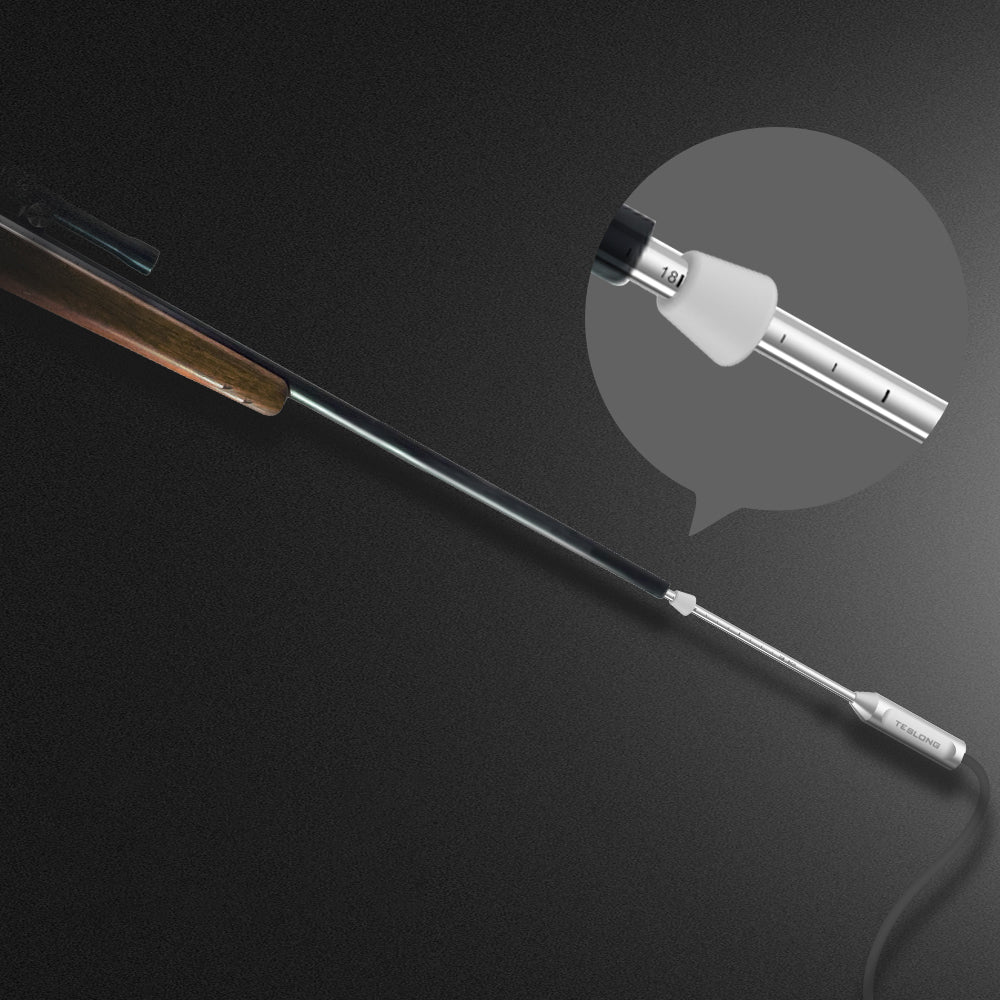

Probe Type: Flexible steel fiber probe (NTG450); Rigid stainless steel probe (NTG450H)
Probe Diameter: 0.2 in (5.0 mm)
Probe Length: 45 in (115 cm) (NTG450); 26 in (66 cm) (NTG450H)
Image Capturing Resolution: 1920x1080 pixels
Video Recording Resolution: 1280x720 pixels
Depth of Field: 0.4 to 0.6 in fixed focus
Field of View: 70°
Megapixels: 1.0 Megapixel
LED Lights: 6 Adjustable High-intensity LEDs
Battery: 2500mAh lithium-ion battery
Splash, Water and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529
Caliber (depends on the size of the side-view mirror you use):
0.22 in (5 mm) caliber and larger
0.243 in (6 mm) caliber and larger
0.30 in (7 mm) caliber and larger
0.38 in (8.5 mm) caliber and larger
0.40 in (10 mm) caliber and larger
What is in the Package
Borescope Monitor
Borescope Probe
5x Side-view Mirrors (.22, .243, .30, .38, & .40 Cal)
32 GB MicroSD Memory Card
USB-A/Micro/USB-C to Aviation Cable
USB-C Charging Cable
Instructions and Manuals
