Technical Specs
Model Number: NTG100-C
Probe Type: Flexible steel fiber probe
Diameter: 0.2 in (5.0 mm)
Probe Length: 45 in (115 cm)
Data Cable Length: 60 in (150 cm)
Resolution: 1280x720 pixels
Depth of Field: 0.4 to 0.6 in fixed focus
Field of View: 70°
Megapixels: 1.0 Megapixel
LED Lights: 6 Adjustable High-intensity LEDs
Splash, Water and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529
Operating System: iPhone 15 and newer models. Android devices with version 4.4 and above. Windows XP, 7,8,10, and newer versions.
Caliber (depends on the size of the side-view mirror you use):
35° for 0.22 in (5 mm) caliber and larger
45° for 0.22 in (5 mm) caliber and larger
45° for 0.243 in (6 mm) caliber and larger
45° for 0.30 in (7 mm) caliber and larger
45° for 0.38 in (8.5 mm) caliber and larger
45° 0.40 in (10 mm) caliber and larger
What is in the Package

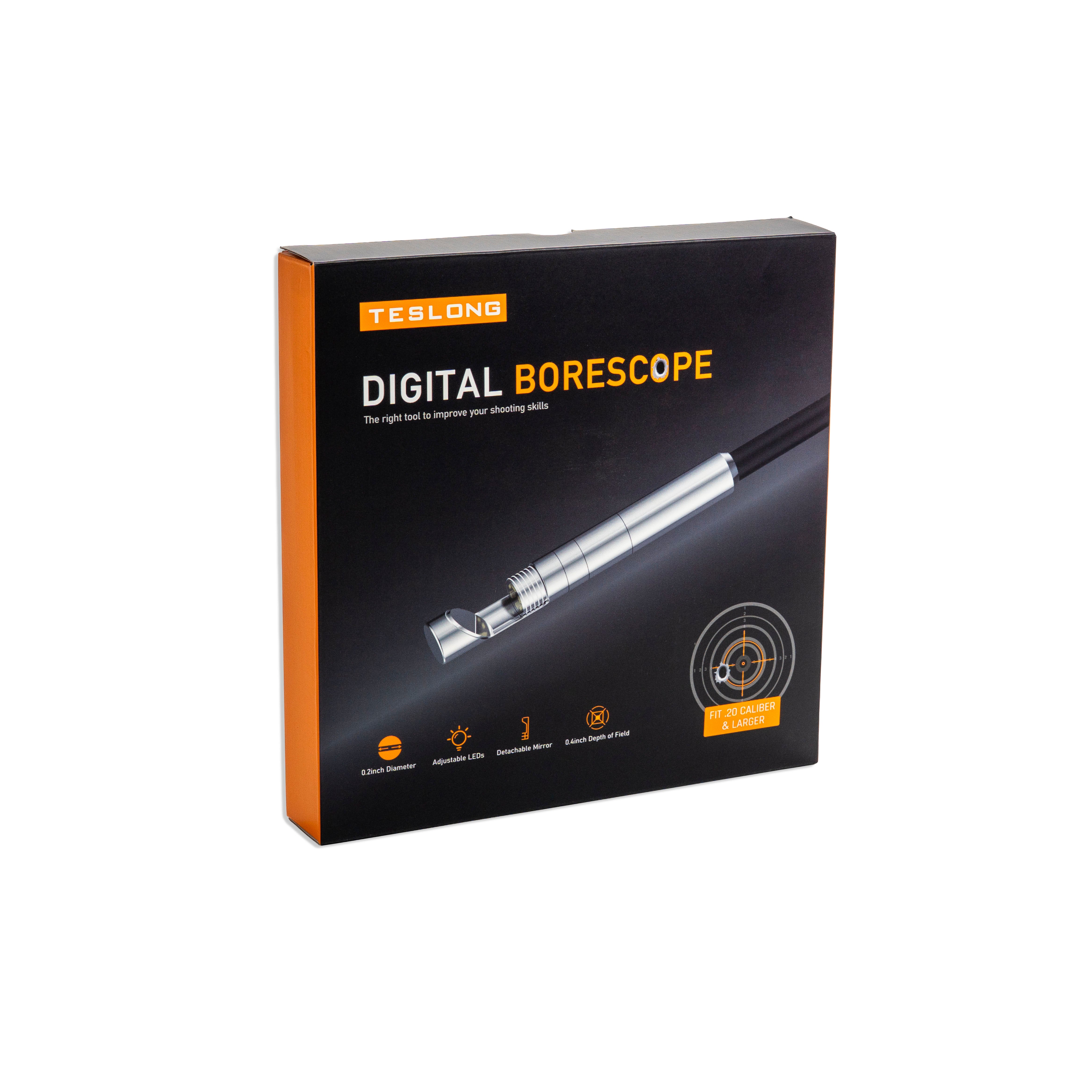

Borescope
6x Side-view Mirrors (.22, .243, .30, .38, & .40 Cal)
USB-A/Micro-USB to Aviation Cable
USB-C Adapter
Instructions and Manuals
